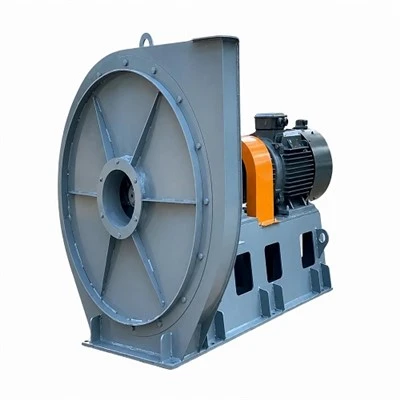

The Industrial High Pressure Fan is a centrifugal fan engineered to deliver the required airflow against high system resistance. It is configured according to airflow, static pressure, gas temperature, medium characteristics and installation requirements.
Key Specifications
|
Parameter |
Specification |
|
Air Volume |
1,000–150,000 m³/h |
|
Total Static Pressure |
Up to 12,000 Pa |
|
Motor Power |
2.2–315 kW |
|
Operating Temperature |
-20°C to 350°C |
|
Impeller Materials |
Q345B / Hardox 450 / SS304 / SS316L / Titanium |
|
Drive |
Direct Drive / Belt Drive |
|
Drive Arrangement |
Arrangement 1 / 4 / 8 |
|
Balancing Grade |
ISO 1940 Grade G2.5 |
|
Inlet/Outlet Orientation |
0°–360°, 45° increments |
Fan Construction
Impeller: Radial or backward-curved impeller consisting of blades, front/rear plates and a central hub.
Scroll Casing: Volute-shaped casing with a circular inlet and tangential discharge outlet. The casing is formed from welded steel plate sections.
Main Shaft: A solid shaft passes through the impeller hub and extends to the external drive side.
Bearing Housing: External bearing housings support the main shaft on both sides of the fan assembly.
Inlet & Outlet: Flanged inlet and discharge openings provide fixed connection points between the fan casing and ductwork.
Drive Assembly: Direct-drive versions connect the motor to the fan shaft; belt-drive versions use a motor pulley, fan pulley and belt transmission.
High-Pressure Performance
High Static Pressure Capability: The centrifugal design develops the pressure required to move air through high-resistance ductwork, filtration equipment, cyclones and process equipment.
Stable Operation: The impeller and scroll casing maintain consistent airflow across the specified operating range as system resistance changes.
Controlled Vibration: Each impeller is dynamically balanced to ISO 1940 Grade G2.5, limiting residual imbalance in the rotating assembly.
Medium & Material Selection
|
Operating Medium |
Fan Construction |
|
Clean Air |
Q345B carbon steel construction |
|
Dust-Laden Air |
Radial impeller with abrasion-resistant construction |
|
Abrasive Dust |
Hardox 450 impeller or replaceable wear protection |
|
Moist Gas |
SS304 wetted construction |
|
Corrosive Gas |
SS316L or corrosion-resistant lining |
|
High-Temperature Gas |
High-temperature shaft extension and cooling arrangement |
|
Chemical Vapors |
SS316L, FRP lining, rubber lining or specified protective coating |
Applications
Pneumatic Conveying: Air movement through enclosed pipelines for plastic pellets, grains, wood chips and other dry bulk materials.
Dust Collection: Exhaust air movement through baghouses, filters and cyclone separators with significant system pressure loss.
Boiler Systems: Combustion-air supply or flue-gas extraction for industrial boiler installations.
Drying & Cooling: Process-air circulation for drying beds, kilns and industrial cooling lines.
Grinding & Material Processing: Dust and process-air extraction from grinding, crushing and other high-resistance equipment.
Supply & Technical Documents
Delivery
Standard Configurations: 4–6 weeks.
Custom Configurations: 6–9 weeks for special materials, motor voltage, testing or other non-standard requirements.
Spare Parts: Impellers, shafts, bearings, seals, belts and other replacement components can be ordered separately.
Technical Documents
The shipment documentation can include:
GA Drawing: Overall dimensions, inlet/outlet position and mounting dimensions.
Performance Data: Rated airflow, pressure and operating point.
Motor Documents: Motor nameplate and applicable test documentation.
Material Certificates: Mill certificates for specified structural and shaft materials.
Balancing Certificate: Dynamic balancing record for the supplied impeller.
O&M Manual: Installation, operation, lubrication and maintenance instructions.
Spare Parts List: Part names and identification information for future replacement.
After-Sales Service
Commissioning Support: Assistance with initial start-up, rotation check, operating condition confirmation and basic commissioning procedures.
Operating Troubleshooting: Support for abnormal vibration, bearing temperature, airflow or pressure deviations based on operating data and fan records.
Spare Parts Supply: Replacement impellers, shafts, bearings, seals, belts, pulleys and other service components can be supplied against the original fan model and serial number.
Parts Identification: Original drawings, part information and serial numbers are used to identify replacement components for future orders.
Maintenance Support: Technical guidance is available for routine inspection, lubrication, component replacement and reassembly.
FAQ
Q: What information is needed to order an industrial high pressure fan?
A: Provide the required airflow, static pressure, gas temperature, medium, gas density, dust concentration, power supply, installation layout and existing fan data if replacing an installed unit.
Q: Can an industrial high pressure fan replace an existing fan?
A: Yes. Replacement orders can be matched using the existing fan model, nameplate, GA drawing, inlet/outlet dimensions, rotation direction, discharge position and mounting dimensions.
Q: How do I select the correct fan rotation and discharge direction?
A: Confirm the required rotation and discharge direction from the plant layout and duct routing before production. The fan outlet orientation is specified in 45° increments.
Q: What motor power supply information should be provided for quotation?
A: Provide the motor voltage, frequency and phase, together with the required motor power or system operating point, so the electrical configuration can be specified correctly.
Q: Can the fan be supplied with a motor and drive assembly?
A: Yes. The fan can be supplied in direct-drive or belt-drive arrangements, with the drive configuration confirmed as part of the order.
Q: What should I provide when ordering a fan for dusty or abrasive gas?
A: Provide the dust type, dust concentration, particle characteristics and gas temperature. This information is used to determine the appropriate impeller and wear protection configuration.
Q: What documents should I request before approving the fan order?
A: For procurement and project approval, request the GA drawing, performance data, motor documentation, material certificates, balancing record, O&M manual and spare-parts information.
Q: How can replacement spare parts be identified for future orders?
A: Use the original fan model and serial number together with the supplied drawings and parts information. This allows replacement components to be matched to the original fan.
Q: Can the fan be ordered for export projects?
A: Yes. Export orders can be prepared with the technical documentation and configuration information required for overseas installation, commissioning and future maintenance.
